Module

OPS119S(J1900)

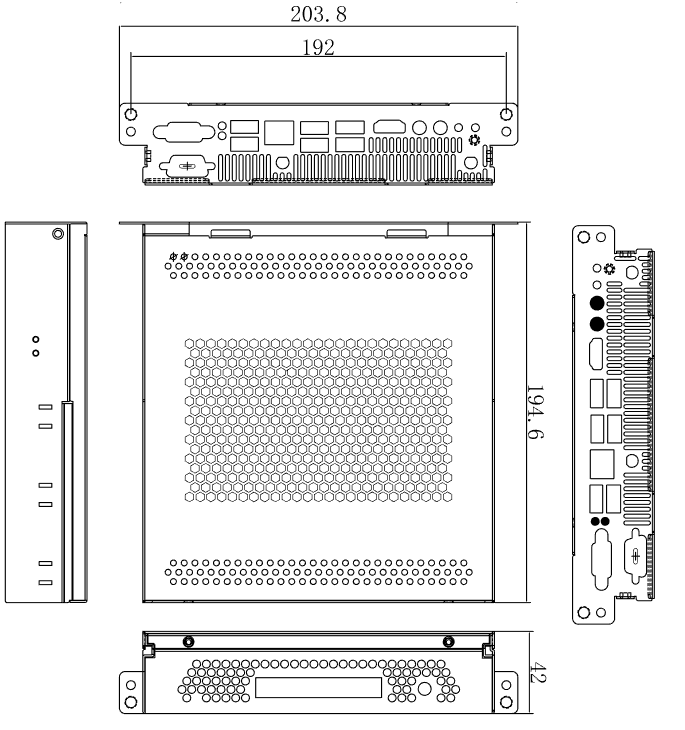

Size

204*195*42mm

Color

Black

CPU

Baytrail-D/I/M?serial CPU

J1900(quad core）2.0Ghz up to2.4Ghz

E3845(quad core）1.91Ghz

J1800（dual core）1.6Ghz up to2.0Ghz

Chipset

Support Baytrail-I/D/M single chipset

Ram socket

1*DDR3 SODIMM 240 Socket

Lan Port

1*RTL8111H Gigabit Ethernet LAN

Audio

Realtek HD ALC662 Audio decoder (Left/righ channel+Mic)

storage

1*SATA3.0 1*NGFF(SSD）slot

NGFF_SSD:32GB/64GB/128GB/256GB for optional

HDD_SATA:500gb/1T for optional

?

Display Interface

VGA :Maximum supported 2048*1536

HDMI1.4:Maximum supported?1920*1200

?

WIFI

1*NGFF?Slot ?Interface support WIFI/3G/4G module

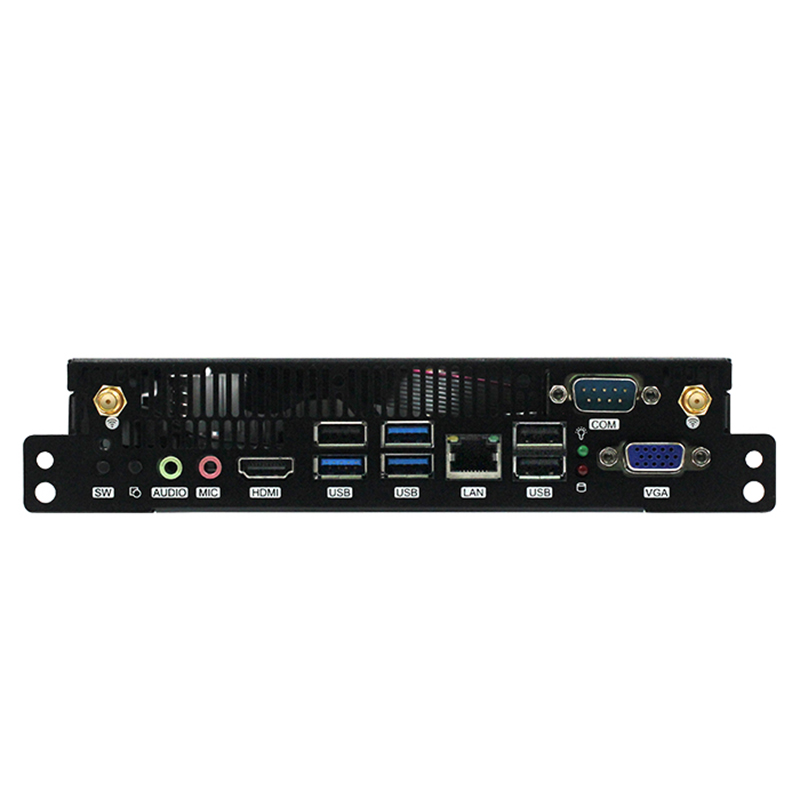

Panel interface

1*LAN ?1*HDMI ?1*VGA ?1*COM ?1*DC ?1*MIC-IN ?1*LINE-OUT?1*USB3.0?5*USB2.0???2*WIFI?antenna Ports

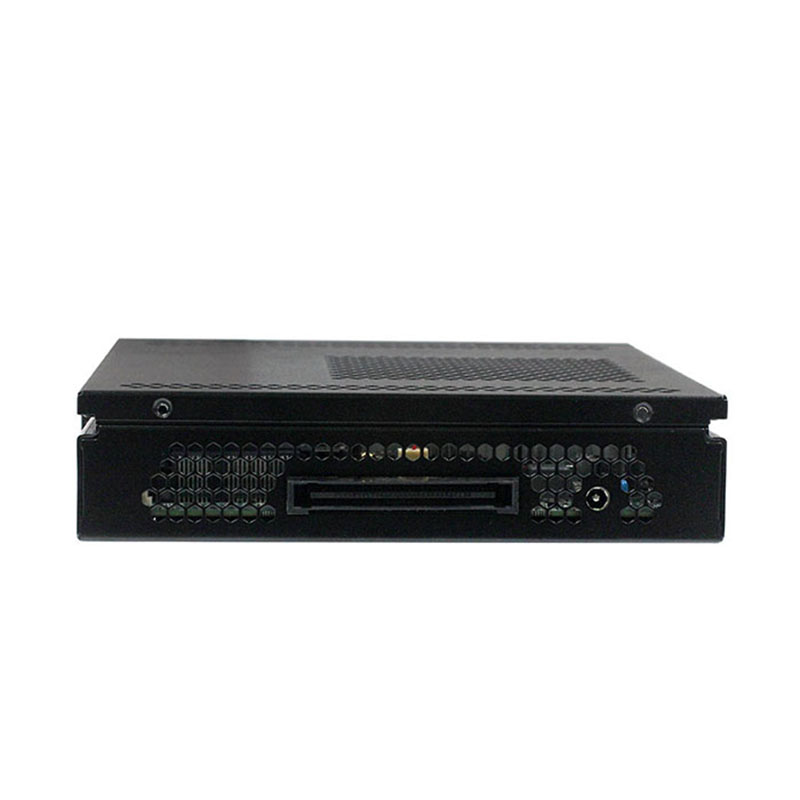

OPS interface board ?Ports

1*LINE-OUT 1*HDMI 1*DP 1*DC ?3*USB2.0??1*Switch button

Operating system

?

Working temperature and humidity

-20°C~+60°C(-4°F~140°F)

0%~90% (non-condensing)

Power Supply

DC 12V-19V

Serial port

1*RS232 Rj45 Port

material

PVC injection molding
